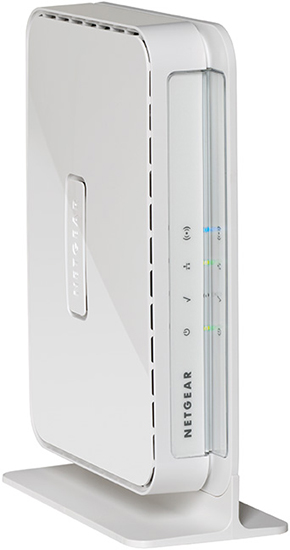

NETGEAR WN203
ProSafe Business Class 802.11n Wireless Access Point

NETGEAR WN203

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

The NETGEAR ProSAFE WN203 Wireless-N Access Point provides standalone configuration with easy setup for a reliable, high-performance and affordable 802.11n wireless solution for small or medium businesses. Power over Ethernet enables flexible deployment and multiple SSID provide enhanced security.

High performance and superior coverage

Up to 15x the speed of 802.11g networks
Up to 10x the coverage of legacy 802.11g networks

Comprehensive security

Supports wireless security features (WPA, WPA2)
Enterprise-grade wireless security with 802.1x and Radius servers

Ease of deployment

Power over Ethernet (PoE) support to eliminate external power adapters
Ease of AP placement for optimal locations (desktop, wall, or ceiling mount)
Mounting slots available for wall or ceiling placement

Business-grade and feature-rich

Multiple SSID for traffic segmentation
Layer 2 VLAN for better security

Industry-leading warranty

NETGEAR ProSAFE Lifetime Hardware Warranty

Specifications:

NETGEAR WN203 Specifications
Standards	IEEE 802.11n 2.0 specification IEEE 802.11g IEEE 802.11b Frequency Band: 2.4 G Hz 802.11n Transmit x Receive: 2x2 Maximum Theoretical Throughpu: 300 Mbps Maximum Transmit Power: 22 dBm @ 802.11b (1 Mbps); 21 dBm @ 802.11g (6 Mbps); 21 dBm @ 802.11n (MCS0)
Physical Specifications	Dimensions: 173 x 133 x 35 mm (6.8 x 5.3 x 1.4 in) Weight: 240 g (0.5 lb) Mounting: desktop, wall, and ceiling
Physical Interfaces	One (1) 10/100/1000BASE-T Ethernet (RJ-45) port with Auto Uplink ™ (Auto MDI-X) with IEEE 802.3af Power over Ethernet (PoE) support Two (2) reverse SMA antenna connectors LEDs: Power, test, LAN, wireless Default Reset
Power	Country-specific plug: 12 watt, 12V, 1 Amp power adapter Power over Ethernet Power consumption: 4.0W
Environmental Conditions	Operating Temperature: Minimum (C/F) 0/32; Maximum (C/F) 45/113 Storage Temperature: Minimum (C/F) -20/-4; Maximum (C/F) 70/158 Operating Relative Humidity: Minimum 10%; Maximum 90% Storage Humidity: Minimum 5%; Maximum 95% MTBF: @ 25 degrees C > 375,000 hours; @ 50 degrees C >125,000 hours
Security	Wired Equivalent Privacy (WEP) Encryption WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK) Rogue AP detection IEEE 802.1x Authentication MAC Address filtering 8 BSSID IEEE 802.1x Radius (EAP TLS, TTLS, PEAP) Wireless access control to identify authorized wireless devices
Network Management	Deployment options: Standalone and Web UI SSL SNMP v1, v2 with 802.11 standard and proprietary MIBs Remote configuration and management through Web browser, or SNMP
Wireless	IEEE 802.11 b/g/n 300 Mbps † Wireless Access Point Antenna: 3 dBi (internal) with additional (2) 2.4 GHz detachable antenna connectors
Advanced Wireless Features	WDS Point-to-point wireless bridge mode WDS Point-to-multipoint wireless bridge mode WDS Repeater mode Adjustable Transmit Power Control (TPC)
Package Contents	ProSAFE Business Class 802.11n Wireless Access Point (WN203) Ethernet cable Desktop and wall-mounting kits Installation guide Resource CD Power adapter, localized to country of sale Warranty/support information card

Deployment:

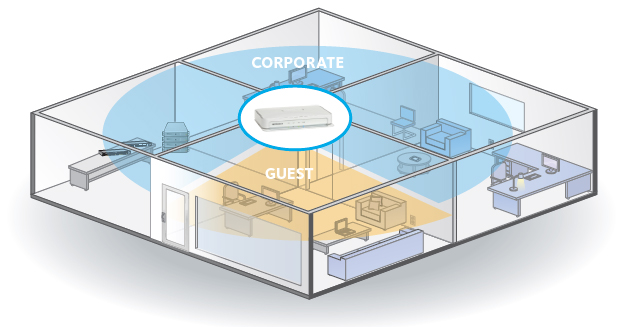

Standalone AP Deployment

The NETGEAR ProSAFE line of business networking products offers a wide array of easy-to-use, professional-grade switching, wireless, software and security solutions. Backed by a lifetime hardware warranty for the original purchaser, ProSAFE products provide an abundance of intelligent, innovative and practical features, addressing the unique requirements of business networks.

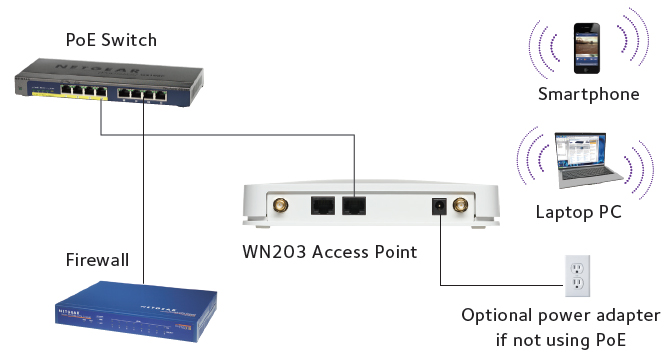

WN203 Deployment

Documentation:

Download the NETGEAR WN203 Datasheet (PDF).
